CableWholesale Singlemode Armored Fiber Optic Cable, 12-Strand Corning Ultra OS2 9/125, Riser Rated, Yellow, 500ft

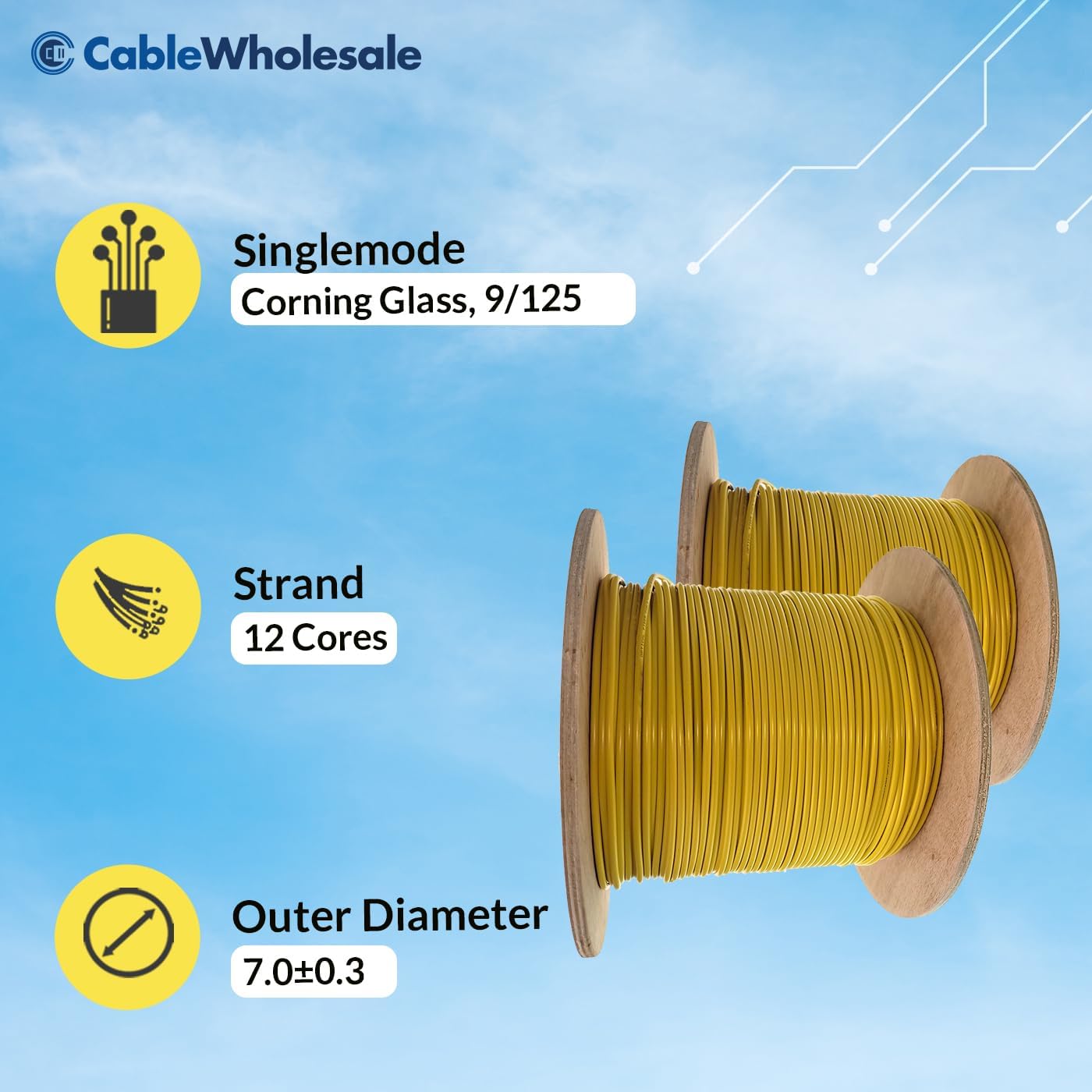

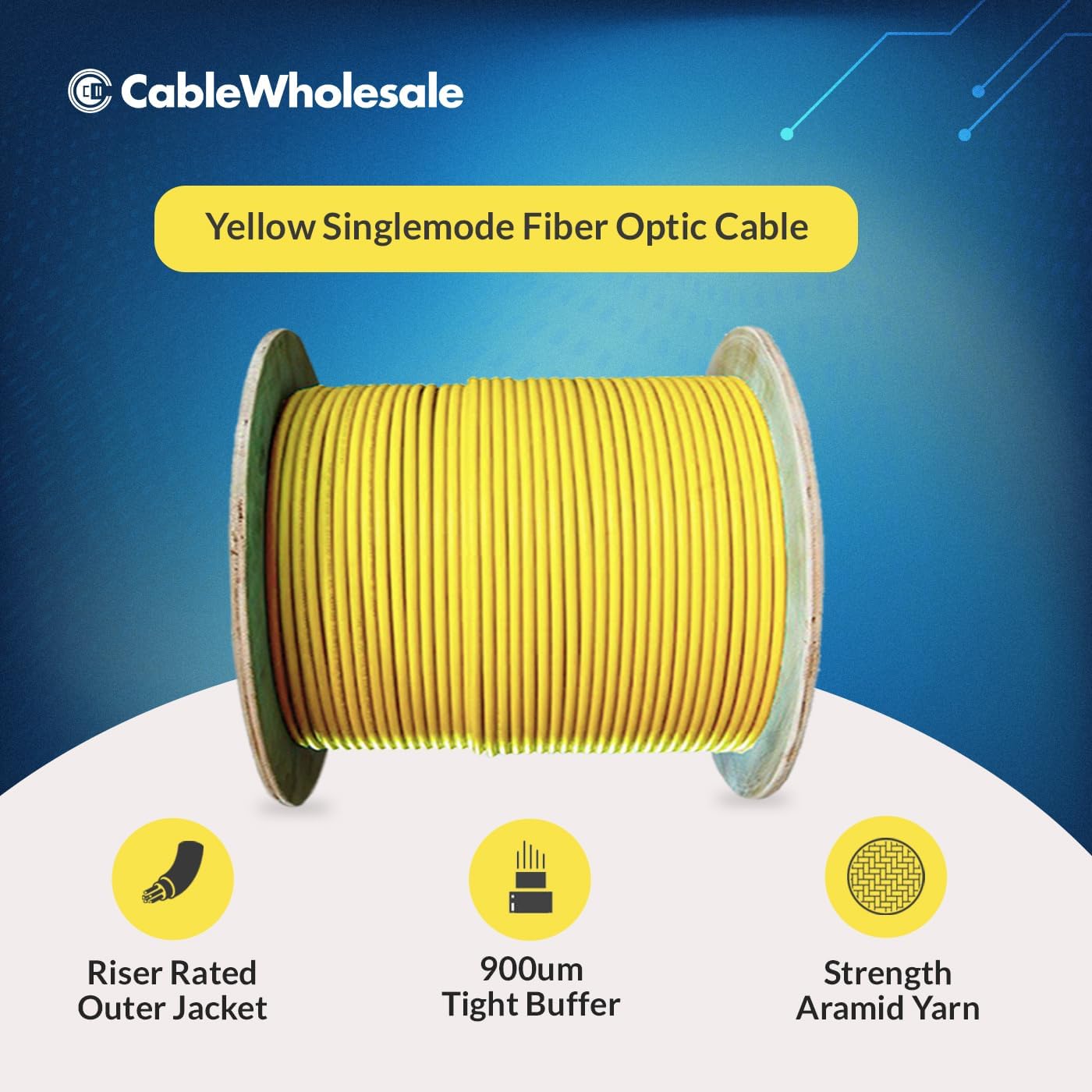

Our Steel Armored Fiber Optic Cable features Rodent Resistant Spiral Steel Armor, 12 strands of OS2 9/125um Singlemode Corning® SMF-28® Ultra core, and a yellow riser rated jacket.This armored cable consists of 0.9mm tight buffered fiber surrounded by an Aramid yarn (similar to Kevlar®) strength member. The core is protected by a spiral-wrapped steel tube that offers an easy installation, rodent protection, and high crush, pressure, and tension resistance during installation and deployment. Indoor rated cabling is primarily used in building wiring applications, it can be Installed in walls, between floors, and under data center floors.Common Applications include Fiber To The Home (FTTH) access networks, Telecommunication Networks, CCTV Networks, Data communications Networks, Local Area Networks, and more.DetailsFiber Count: 12 cores>Fiber Type: Corning® SMF-28® UltraCable Type: 900um Tight BufferedBuffer Material: PVCStrength Member: Aramid YarnArmor: Spiral SteelCable Color: YellowJacket Rating: Riser RatedOptical Fiber CharacteristicsCore Size: 9umWavelength: 1310nm / 1550nmMax. Attenuation: 0.5 / 0.4 dB/kmCladding diameter(um): 125±0.7Core-Clad Concentricity: ≤0.5 umCladding non-circularity(%): ≤0.7Coating-Cladding Concentricity(um): ≤12Coating diameter(um): 242±5Core diameter(um): 8.2Effective Group Index of Refraction(Neff)-1310nm:1.4676-1550nm:1.4682Fatigue Resistance Parameter(Nd): 20Temperature Dependence: -60~85°CTemperature-humidity cycling: -10 to +85°C,98% R.H.

• Enhanced Durability: Spiral steel armor provides exceptional resistance and protects against crush and tension forces, ensuring the cable's integrity during installation and use.
• Premium Corning Optical Fiber: Features 12 strands of Corning SMF-28 Ultra singlemode fiber, optimized for low attenuation and high-speed data transmission at 1310nm/1550nm wavelengths.
• Safe for Indoor Use: Riser rated with a yellow PVC jacket, ideal for vertical installations and meeting safety standards in building wiring applications.
• Strength and Flexibility: Surrounded by Aramid yarn, similar to Kevlar, for added strength, making it suitable for demanding indoor environments.
• Versatile Network Applications: Perfect for a wide range of applications including FTTH access networks, telecommunication and data communications networks, and local area networks.
