ESP32-P4-NANO Development Board Based on ESP32-P4 Chip with RISC-V Dual-core and Single-core Processors, Onboard MIPI-CSI, MIPI-DSI, USB 2.0 OTG, ETH, SDIO 3.0 TF Card Slot, etc. Interfaces

Overview This product is a high-performance development board based on the ESP32-P4 chip with RISC-V dual-core and single-core processors, and features rich Human-Machine Interfaces, including MIPI-CSI (with integrated Image Signal Processor) and MIPI-DSI interface. It supports a comprehensive range of commonly used peripherals including SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. Additionally, it offers support for USB OTG 2.0 HS, Ethernet, and SDIO Host 3.0, facilitating high-speed connectivity. The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-NANO meets the advanced requirements of Human-Machine Interfaces, efficient edge computing, and increased IO-connectivity. Features High-performance MCU with RISC-V 32-bit dual-core and single-core processors 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP S-R-A-M, 8 KB TCM Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, etc. Adtaping 2*2*13 GPIO headers with 28 x programmable GPIOs Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation Package Content ESP32-P4-NANO x1 8Ω 2W speaker x1 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!

• ESP32-P4-NANO development board adopts ESP32-P4 high-performance MCU with RISC-V 32-bit dual-core and single-core processors, onboard ESP32-C6-MINI module to extend 2.4GHz Wi-Fi 6 and Bluetooth 5/BLE for ESP32-P4, using SDIO interface protocol for communication
• 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP S-R-A-M, 8 KB TCM. 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder

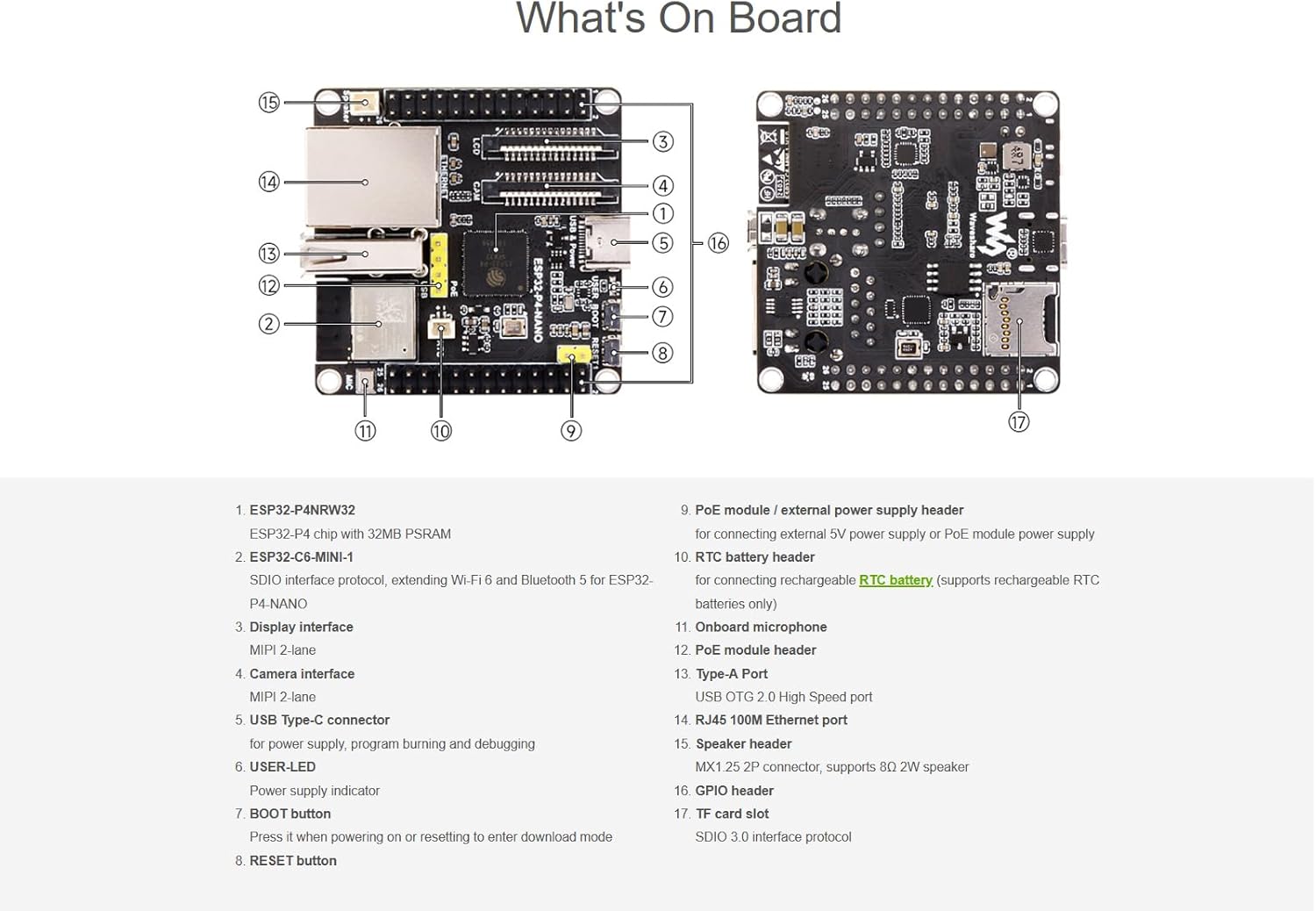

• Rich Human-Machine Interfaces: including MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, supports SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI commonly used peripherals
• Adtaping 2*2*13 GPIO headers with 28 x programmable GPIOs. Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
