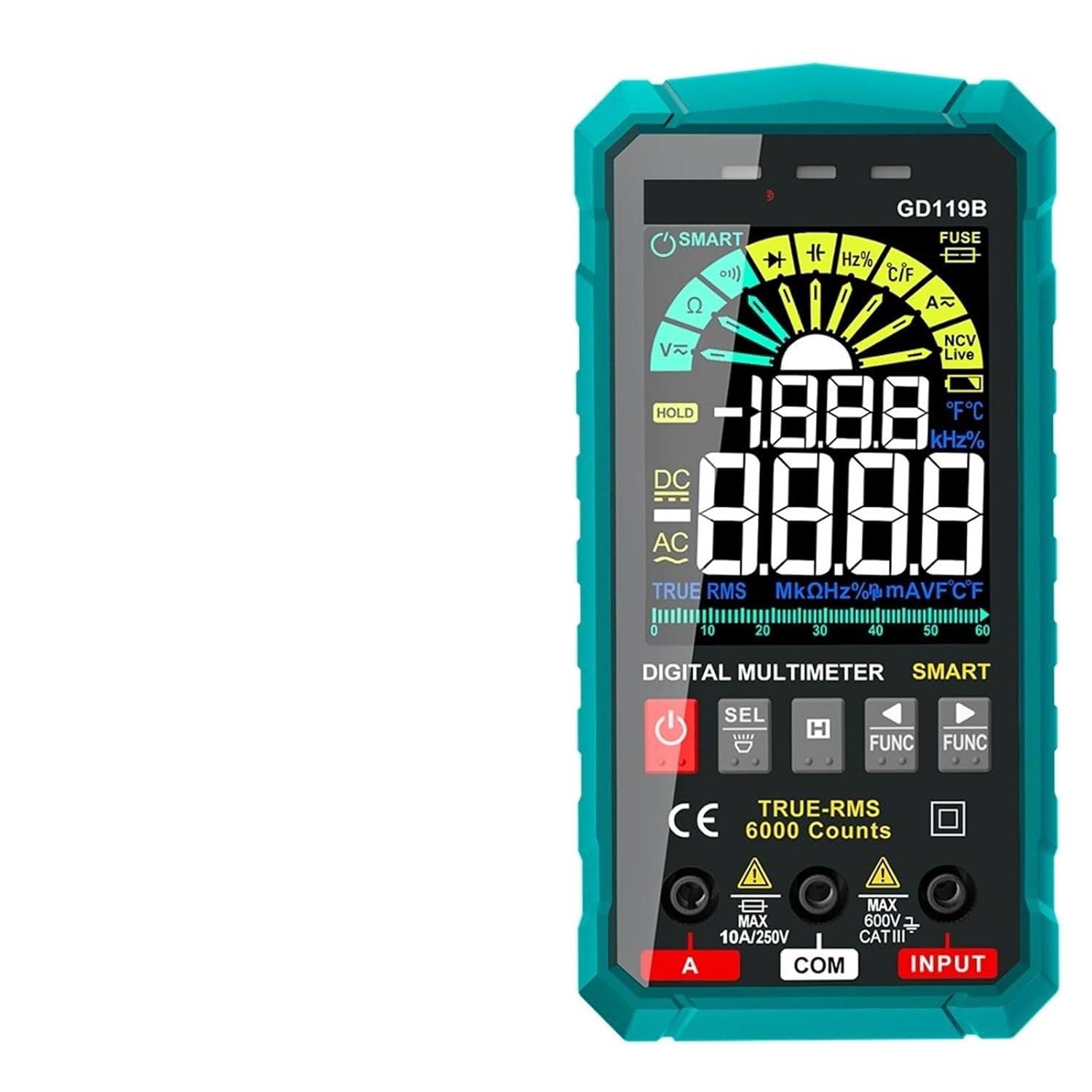

Generation 600V Digital Multimeter Ture RMS AC DC NCV Smart Multimetro Tester Ohm Capacitance Hz Voltage Meter(GD119B-Blue)

Multimeters & Analyzers6000 Counts Smart Multimeter Digital True RMS Auto Range 600V 10A Tester Ohm Hz Capacitance REL AC DC DMM MultitesterMultimeter is an intelligent true effective value multimeter, intelligent identification and manual function are integrated, which can measure AC and DC voltage, AC and DC current, resistance, capacitance, continuity, diode, NCV,etc.; It is the best choice for professional electrician, engineer, electronic enthusiast or family use.Product Features GD119B1) Color Larger HD Display2) Maximum display: Maxium 6000 Counts display3) Auto range and Manual Range4) Sampling Rate: About 3 times per second5) Over range display: the highest position shows "OL"6) Low voltage display: low battery indication<;80%8) Power Supply: 4 x1.5V Batteries ( NOT include)9) Input Jack Led Indication10) It is a stable performance, high precision, high reliability clear readings, and overload protection.Technical Details: GVDAModel name: GD119BDC Voltage:600mV/6V/60V/600V ±(0.5% + 3)AC Voltage:6V/60V/600V ±(0.8% + 3)DC Current:600mA/6A/10A ±(1.2%+3);AC Current:600mA/6A/10A ±(1.2%+3);Resistance:600/6k/60k/600kOHM ±(1.0%+5);6m/60mOHM ±(1.5%+10)Capacitance:6nF/60nF/600nF/6uF/60uF/600uF ±(4.0%+5); 6mF/60mF ±(5.0%+5)Frequency:6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1.0%+3)Duty:1.0%-99.0% ±(1.0%+3)Temperature :-40~1000°C; -40-1832°F 2°CCounts:6000countsDisplay:HD Colour DisplayAnalog Bar/ Gear Display: YesSmart Function(AC/DC Voltage,resistance and continuity):yesAuto Identification of current input:yesNCV/Live/Continuity test:yes(sound and light alarm)<;50ohmDiode test:yes(sound alarm) (0-3V)Bargraph/Data hold /True RMS:yesFuse Burning Prompt:yesInput Jack LED indication:yesLow battery indication:yesAuto power off:yesFlashlights:yesPower supply:4pcs AAA Batteries (not include)Product Size:113x68x19mmPackage Size:170x95x50mmPackage Weight:about 400gPacking Contents1pc Multimeter1pc pen cable1pc cloth bag1pc Thermocouple probeDigital Smart Multimeter 6000 Counts True-RMSMultiple FunctionsThe ST600Y multimeter measures up to 600V AC/DC voltage, 10A AC/DC current, and resistance of 60M Ohms. Additionally, the tester measures temperature, capacitance, frequency, duty-cycle, wire on/off, diodes, and continuityHD Color ScreenGD119B have a large color screen, and flashlight for easy reading even in bright or dim places.Smart (Auto) Mode and Manual ModeIt has an 'auto' mode that enables it to automatically detect and respond to the most frequent measures, such as Volts AC or DC, resistance, or continuity. All that is required in this intelligent mode is the attachment of the probesLarge Display Screen 6000 CountsGD119B have a large color screen, and flashlight for easy reading even in bright or dim places.NCV DetectionWhen the indicator light is on, it means there is voltage. Please pay attention to your safetyDetects Live WiresLive wire testing with the red test lead. When it detects a live wire, the clamp meter will reflect with the audio alarm.Silicon protective case coverWe have Black, Blue, Green color silicon case for choicePower supply (Battery Not included)4PCs 1.5V AAA BatteriesTempreature Measurement K-Type temperature probe included, Temperature: -40~1000°C; -40-1832°F 2°CLED spot lights lampflashlight for easy reading even in bright or dim places.Black Cloth BagThree Color Silicon case for ChoicePacking Lists==========Battery Included : NoHigh-concerned chemical : NoneIs Smart Device : NoOperating Mode : Auto RangeMeasuring Capacitance Range : 6nF/60nF/600nF/6uF/60UF/600UF ±(4.0%+5); 6mF/60mF ±(5.0%+5)Operating Temperature : 0 - 40 DIY Supplies : ElectricalMeasuring Resistance Range : 600/6K/60K/600kOHM ±(1.0%+5);Certification : ,FCCModel Number : GD119BMeasuring Inductance Range : noDimensions : 113x68x19mmDC Current : 600mA/6A/10.0 ±(1.2%+3);AC Current : 600mA/6A/10.0 ±(1.2%+3);DC Voltage : 600mV/6V/60V/600V ±(0.5%+3)Display Type : Digital DisplayGVDA Model : GD119BAC Voltage : 6V/60V/600V ±(0.8%+3)
