MILLING INDEXING 4"/100 ROTARY TABLE, M6 CLAMP KIT WITH SUITABLE TAILSTOCK (65 MM 3 JAW SELF CENTERING CHUCK
5.0 (56 items)
Limited Time Sale$149.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216567920 | Release Date | 2026/04/19 | List Price | $100.00 | Model Number | 216567920 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
4" (100 mm) Rotary Table Designed for smaller milling machines. Table diameter 100 mm Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Center Height in vertical position: 2-1/16" (50 mm approx) excluding chuck. Hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in Horizontal & vertical position. Supplied with a small Chuck, made from High Quality chuck, the body of which is made from SG Iron & Jaws are of Tool steel hardened & ground. Supplied with a mounting back plate & fixing tee nuts with screws. The Back plate has been drilled in a manner that it will fit to a 3 slot or a 4 slot rotary table. A Tool Steel Back Plate is supplied with Fixing T nuts to Mount the Chuck on It. Back Plate is Drill in a manner that it will fit both 3 as well as 4 slots Table. The Back side of the Plate has a locating Spigot to center the Mounting on to the Table.
- Tool Set of 4" Regular Rotary Table, M6 Clamp Kit with a suitable Tailstock & Small 65 mm 3 jaws self centering Chuck with Back Plate & fixingsT nut Bolts

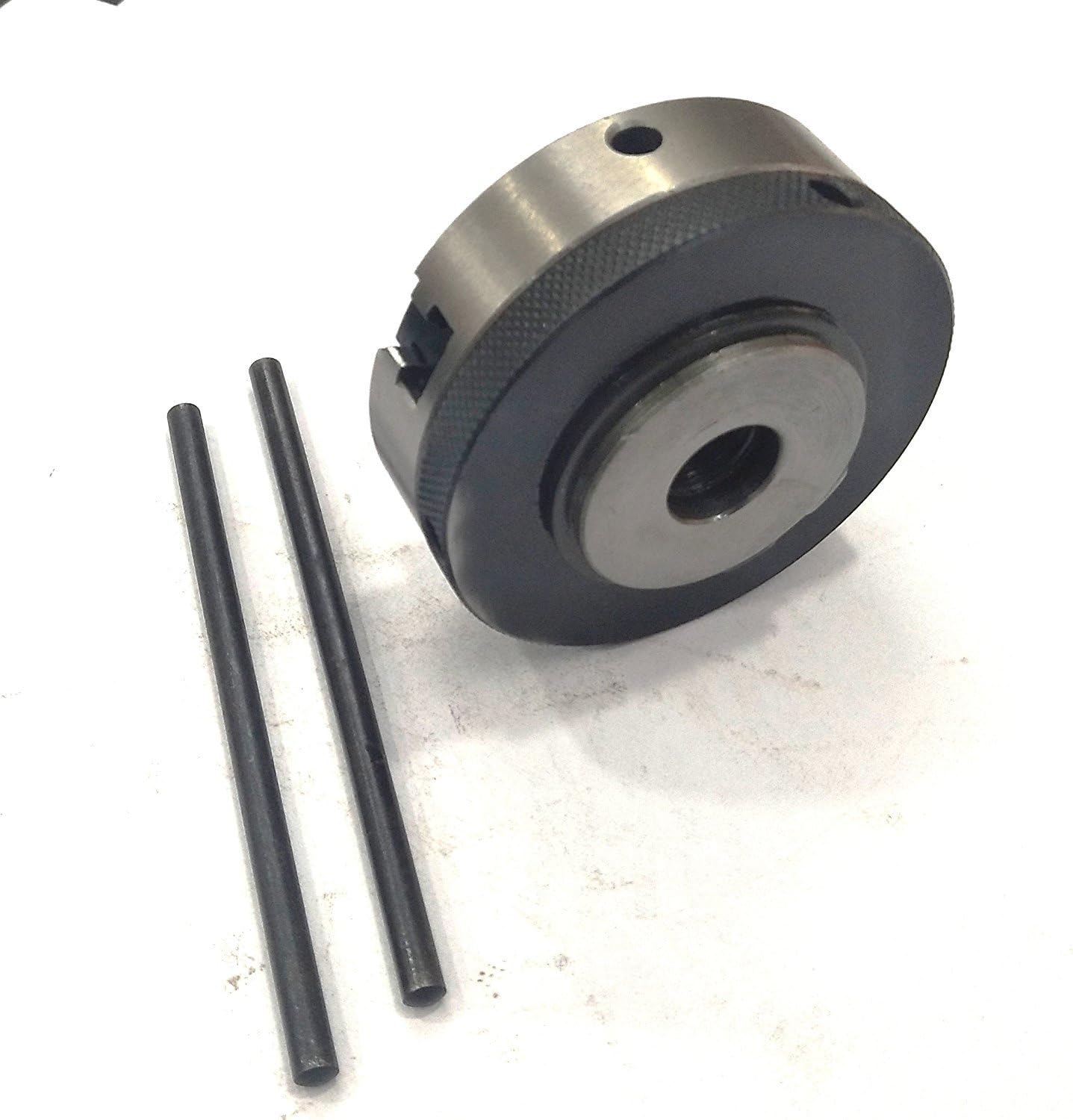

- Chuck Body is High Grain SG Caste Iron & Jaws are of Tool Steel. Jaws are Hardened & Ground.

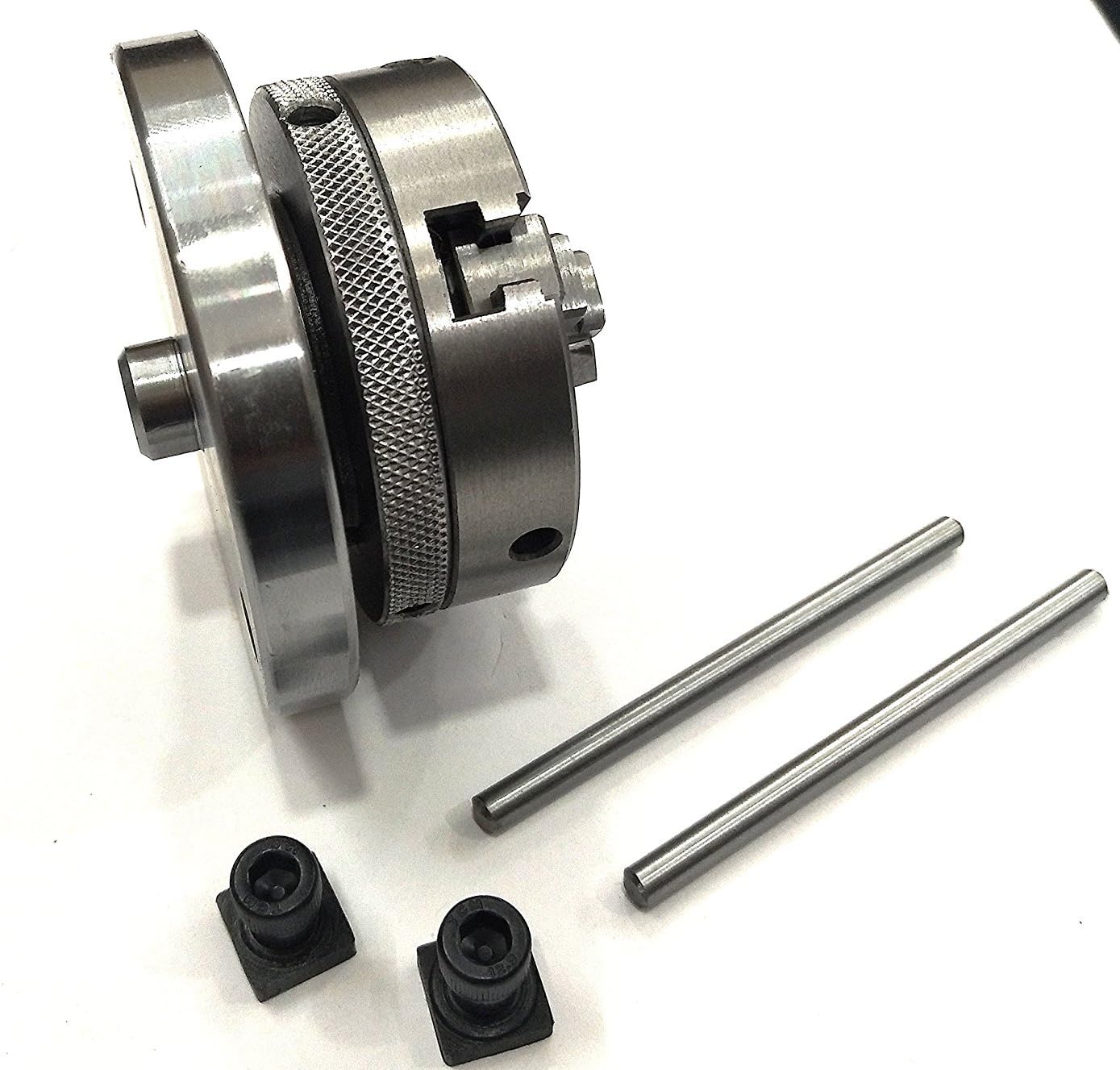

- A Tool Steel Back Plate is supplied with Fixing T nuts to Mount the Chuck on It. Back Plate is Drill in a manner that it will fit both 3 as well as 4 slots Table. The Back side of the Plate has a locating Spigot to center the Mounting on to the Table.
- It can be mounted both in Horizontal & vertical position. Hand wheel is graduated in divisions of 10 min & can be set to zero.
| Brand Name | AD INTERNATIONAL |
|---|---|
| Thread Size | M6 |
| Manufacturer | ADI |
| Material Type | TOOL STEEL & CASTING |
| Item Type Name | Combo |
