RED WOLF 2PCS 5/16"" M8 Dual Stud Bus Bar 12-48V Power Distribution Block w/DC 6V-50V Automatic Reset Circuit Breaker #10-32 Stud Bolt
4.0 (85 items)
Limited Time Sale$19.01 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215151640 | Release Date | 2026/04/12 | List Price | $12.67 | Model Number | 215151640 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

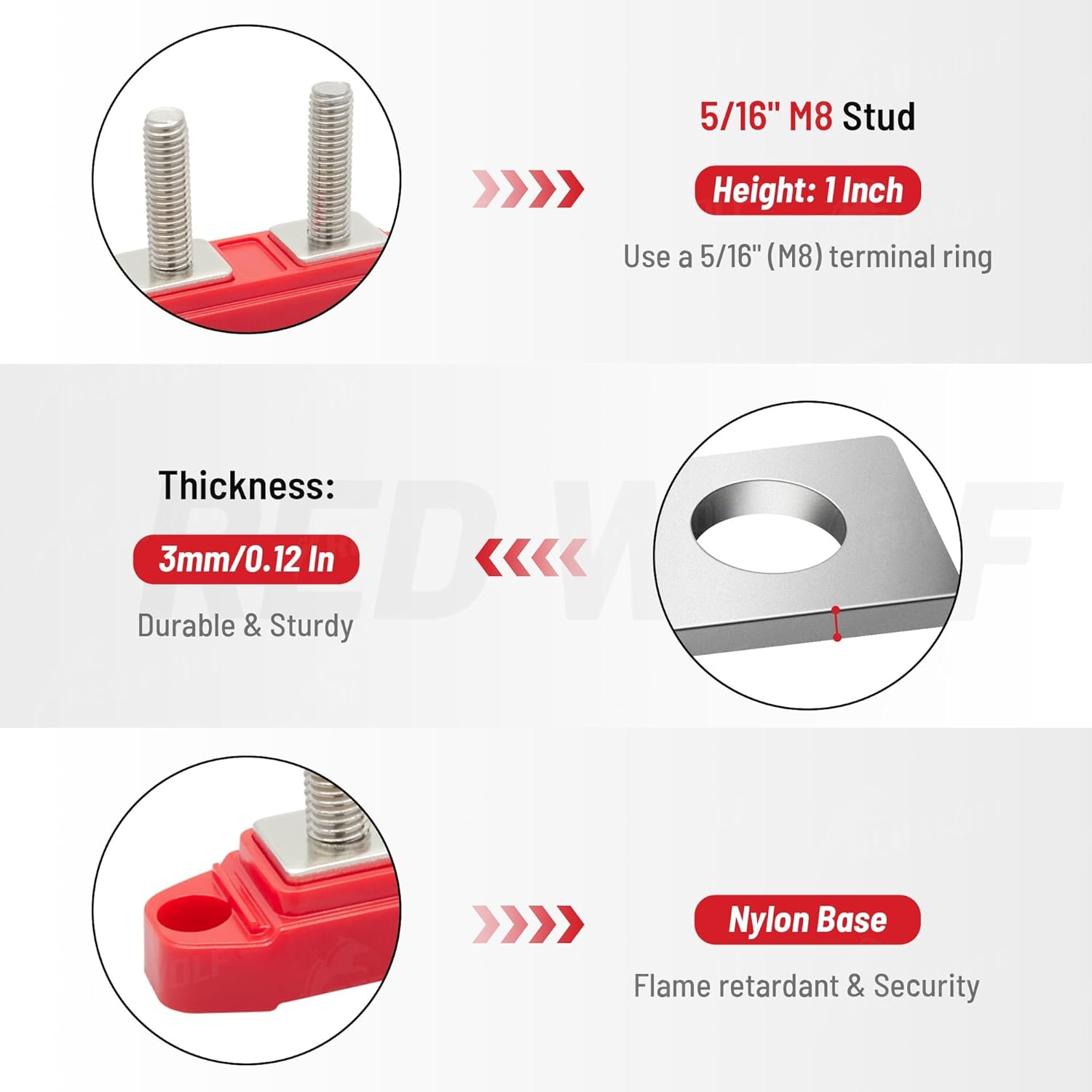

- Specification: Stud size: 5/16"(M8) dual stud; Max voltage: 48V DC; Max continuous amperage: 250A DC; The battery distribution block rated 250A when work in 12v supplier circuit, and the battery terminal block can handle MAX 48v source power
- Function: M8 dual stud blocks enable the utilization of one or multiple connections and wires to terminate heavy-duty cables, akin to battery junction posts used for battery power and ground connections
- Positive and negative: Battery terminal protectors are well-suited for customizing or relocating battery and wiring configurations; Utilizing battery bus bars for wiring maintains a neat circuit layout and minimizes the risk of short circuits
- Protect Your System: 20 amp Breaker offers overload additional protection in branch circuit inside the electrical equipment, widely used in automotive, electromechanical equipment, marine, ATV, RV, off-road, special vehicle, yacht, battery charger, car engine etc
- Automatic Reset Circuit Breaker: Current: 20A; Working Voltage: DC 6V- 50V, AC 125- 250V; M5 (#10-32) Studs; Operating temperature: -10°C to 60°C; NOTE: Ambient temperature will affect the trip, when external temperature is too high, breaker will also trip though current does not reach the rating of the fuse
| Model | 5a4cd6ac-6cc7-4adb-bd38-4a775a6e50dd |
|---|---|
| Brand Name | RED WOLF |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 250 Amps |
| Number Of Poles | 2 |
| Number Of Contacts | 2 |
| Number of Positions | 1 |
| Upper Temperature Rating | 60 Degrees Celsius |
